Inicio /Productos/Perforadora de DTH/Mobile Drilling Rig Rotary Head Power 3.7kw Small DTH Drill Rig Borehole Drilling Equipment

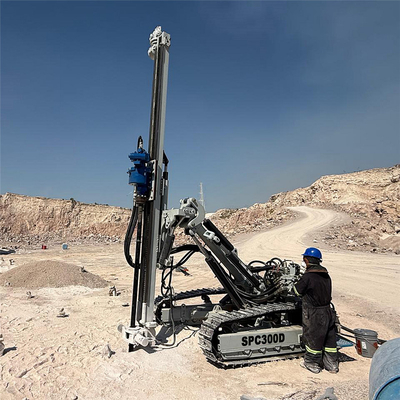

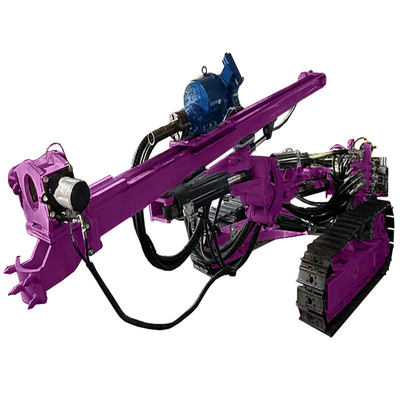

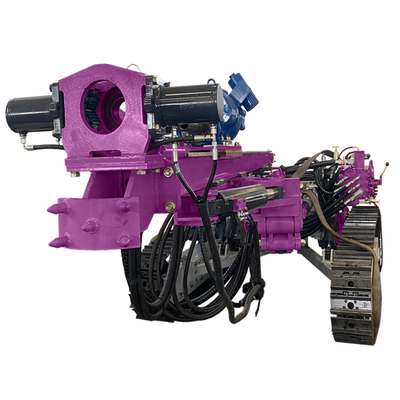

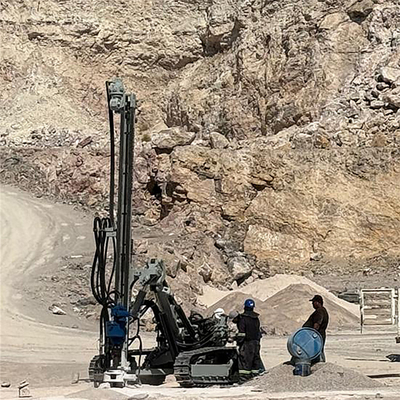

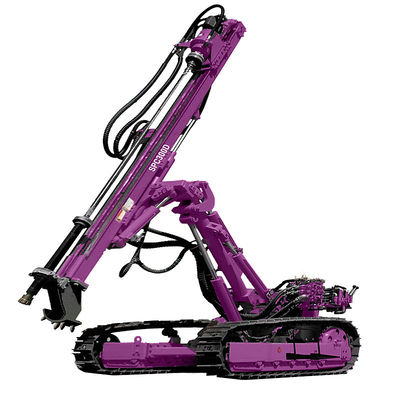

Mobile Drilling Rig Rotary Head Power 3.7kw Small DTH Drill Rig Borehole Drilling Equipment

1 juego/juegos
MOQ
negotiable
Precio
Mobile Drilling Rig Rotary Head Power 3.7kw Small DTH Drill Rig Borehole Drilling Equipment
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Nombre del producto: plataforma de perforación de la correa eslabonada
Potencia (W): 3.7kw
Tipo de potencia: Gasóleo
Profundidad de perforación: 30 metros
Diámetro de perforación: 90-254mm
Gradabilidad: 35°
Ángulo de giro: 13°
Cantidad de aire: 15 a 25 m3/min
Esfuerzo de torsión rotatorio: 2000 nanómetros
Consumo de aire: 1.73 m³/min
Presión de trabajo: 2.5mpa
Capacidad del tanque hidráulico: 18L
Velocidad de rotación: 70rpm
Empuje máximo hacia adelante: 11KN
Aplicación: Explotación minera, mina, agujero de ráfaga de perforación, explotación minera y construcción
Velocidad de viaje: 3.5Km/h
Característica: Alta eficacia de perforación, precio competitivo
dimension(l*w*h): 6100*2200*2105 mm
Peso: 5400 kg
El tipo: equipo de perforación rotativo
Resaltar:

Borehole Drilling Equipment

,

3.7KW Borehole Drilling Equipment

,

Rotary Head Drilling Equipment
Información básica
Lugar de origen: Zhejiang, China
Nombre de la marca: Sanrock
Certificación: CE ISO 9001:2015
Número de modelo: SPC300D Personalizado
Pago y Envío Términos
Detalles de empaquetado: Envase desnudo para la plataforma de perforación; Envase de madera para piezas de repuesto; O a peti
Tiempo de entrega: 18-25 días hábiles
Condiciones de pago: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Capacidad de la fuente: 3000 juegos/juegos por mes
Descripción de producto

Mobile Drilling Rig Rotary Head Power 3.7kw Small DTH Drill Rig Borehole Drilling Equipment 0

Mobile Drilling Rig Rotary Head Power 3.7kw Small DTH Drill Rig Borehole Drilling Equipment 1Mobile Drilling Rig Rotary Head Power 3.7kw Small DTH Drill Rig Borehole Drilling Equipment 2Mobile Drilling Rig Rotary Head Power 3.7kw Small DTH Drill Rig Borehole Drilling Equipment 3

The split-type fully pneumatic down-the-hole drilling rig is a robust drilling system specifically designed for efficient rock drilling operations in remote or challenging environments. Featuring a modular design with separated air compressor and drilling components, this entirely compressed-air-powered equipment eliminates the need for hydraulic systems or electrical power sources. Utilizing high-pressure compressed air for both rock penetration and cuttings removal, it offers exceptional portability and rapid deployment capabilities. The system integrates a pneumatic hammer with tungsten carbide bit for effective rock fragmentation, while its separated configuration allows flexible transportation and quick assembly on-site. Ideal for mining exploration, geotechnical investigations, and construction projects in rugged terrains, this environmentally friendly drilling solution ensures reliable performance with reduced maintenance requirements and enhanced operational safety.





Mobile Drilling Rig Rotary Head Power 3.7kw Small DTH Drill Rig Borehole Drilling Equipment 4

Mobile Drilling Rig Rotary Head Power 3.7kw Small DTH Drill Rig Borehole Drilling Equipment 5

Mobile Drilling Rig Rotary Head Power 3.7kw Small DTH Drill Rig Borehole Drilling Equipment 6

Mobile Drilling Rig Rotary Head Power 3.7kw Small DTH Drill Rig Borehole Drilling Equipment 7

Mobile Drilling Rig Rotary Head Power 3.7kw Small DTH Drill Rig Borehole Drilling Equipment 8Mobile Drilling Rig Rotary Head Power 3.7kw Small DTH Drill Rig Borehole Drilling Equipment 9





Products Description
Product name
Drilling Rig
Model
SPC300D
SPC300T
Dimension
6100*2200*2105mm
5777*2210*1942mm
Min.Ground Clearance
250 mm
250mm
Weight
5400 kg
5400kg
Travel Speed
0-3.5 km/h
0-3.5km/h
Travel Motor Power
8.8 kW x2
8.8 kW x2
Gradeability
35°
35°
Swing Angle
13°
13°
Rotary Head Power
3.7kw
3.8kw
Rotary Torque
2000 Nm (at 0.7 MPa)
365N.m
Max.Rotary Speed
70rpm
380rpm
Air Consumption
1.73 m³/min at 0.3Mpa
16m³/min at 0.55Mpa
Max.Air Pressure
2.5MPa
1.0Mpa
Air Quantity
15-25 m3/min
15-25m³/min
Drill rod
φ76,φ89 X3000 mm
T38, T45*3050/3660mm
Hydraulic tank capacity
18L
55L
Feed stroke
3980 mm
3980mm
Maximum forward thrust
11KN
11KN
Sliding frame swing
left 47°/right 54°
Left 47°/Right 54°
Drill boom tilt
Up 46°/Down 23°
Up 46°/Down 23°
Drill boom swing
Left 40°/Rght 40°
Left 40°/Right 40°




Mobile Drilling Rig Rotary Head Power 3.7kw Small DTH Drill Rig Borehole Drilling Equipment 10

Mobile Drilling Rig Rotary Head Power 3.7kw Small DTH Drill Rig Borehole Drilling Equipment 11

Mobile Drilling Rig Rotary Head Power 3.7kw Small DTH Drill Rig Borehole Drilling Equipment 12Mobile Drilling Rig Rotary Head Power 3.7kw Small DTH Drill Rig Borehole Drilling Equipment 13Mobile Drilling Rig Rotary Head Power 3.7kw Small DTH Drill Rig Borehole Drilling Equipment 14

Mobile Drilling Rig Rotary Head Power 3.7kw Small DTH Drill Rig Borehole Drilling Equipment 15Mobile Drilling Rig Rotary Head Power 3.7kw Small DTH Drill Rig Borehole Drilling Equipment 16
Company Profile
Mobile Drilling Rig Rotary Head Power 3.7kw Small DTH Drill Rig Borehole Drilling Equipment 17
Mobile Drilling Rig Rotary Head Power 3.7kw Small DTH Drill Rig Borehole Drilling Equipment 18


Mobile Drilling Rig Rotary Head Power 3.7kw Small DTH Drill Rig Borehole Drilling Equipment 19
1.What can you buy from us?
Tunneling Jumbo drilling rig ,DTH drilling rig,Automatic drilling rig with rod changing system,rotary drilling rig,pile driver machine, core drilling rig ,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,Tricone bit ,eccentric casing system,DTH hammer,drill rod,spare parts etc.

2.How can I make payment?
A: You can pay directly online on Alibaba with credit card, or TT, Western Union, LC etc.

3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.

4.How is your quality control? A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.

5.Do you have any certificate of authorization?
A: Our machinery is CE certified.
