Name: Hydraulic Pneumatic DTH Drilling Machine Impact Frequency 34HZ Surface Borehole Drilling Rig
Brand: Quzhou Sanrock Heavy Industry Machinery Co., Ltd.
SKU: SR90
Availability: InStock

Hydraulic Pneumatic DTH Drilling Machine Impact Frequency 34HZ Surface Borehole Drilling Rig

1Set/Sets por mes

MOQ

negotiable

Precio

Caracteristicas Galería Descripción de producto Pida una cita

Caracteristicas

Especificaciones

Nombre del producto: Plataforma de perforación

nombre: PLATAFORMA DE PERFORACIÓN DE ROCA

Solicitud: Proyecto minero, carbón, mineral, agua bien

Característica: Control hidráulico, eficiencia de perforación ligera de alto peso

Diámetro de perforación: 50-80m m

Profundidad de perforación: 35m

Modelo de vástago: φ38 mmx90 mm

Garantía: 6 meses

Fuerza de impacto: ≥225J

Frecuencia de impacto: ≥34Hz

Torque de salida de la caña de perforación: ≥ 140NM

Dimensiones del túnel viable: 2.2mx 2.2m - 3.0mx 3.0m

Consumo total de aire: ≤225l/s

Ángulos de perforación: 0-360 grados

Servicio postventa proporcionado: Soporte en línea, soporte técnico de video

Peso: 95 kg

Resaltar:

Hydraulic DTH drilling machine 34HZ

Pneumatic borehole drilling rig

Surface drilling rig impact frequency

Información básica

Lugar de origen: Zhejiang, China

Nombre de la marca: SANROCK

Certificación: CE ISO 9001:2015

Número de modelo: SR90

Pago y Envío Términos

Detalles de empaquetado: Paquete desnudo para máquinas, paquete de caja de madera para repuestos o demanda de clientes.

Tiempo de entrega: 15-25 días

Condiciones de pago: LC, D/A, D/P, T/T, Western Union, MoneyGram

Capacidad de la fuente: 5000Set/Sets por mes

Galería

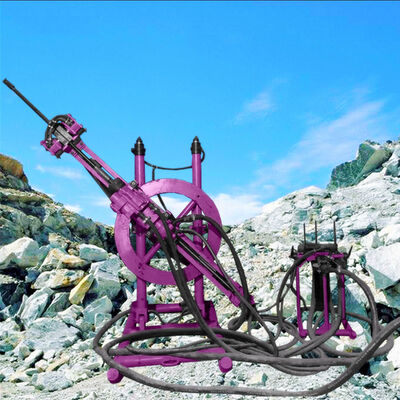

Hydraulic Pneumatic DTH Drilling Machine Impact Frequency 34HZ Surface Borehole Drilling Rig

Descripción de producto

The sizes of different models of turntables are suitable for 2.2mx2.2m-2.7mx2.7m / 2.5mx2.5m-3.0mx3.0m
Tunnel Pneumatic DTH Drilling Rig This compact underground drilling machine is specifically engineered for
tunnel excavation and subterranean boring operations, utilizing compressed-air-powered DTH (Down-The-Hole)hammer technology for efficient rock fragmentation in confined spaces.
The rig features a low-profile design with 360° omnidirectional drilling capability, achieving precision boreholes
(Φ50-80mm) through granite and hard strata with minimal vibration transmission.

Products Description

Type	Rotary Drilling Rig
Product name	Drilling Rig
Applicable	Building Energy ,Mining,borehole drilling rig

Parameters	Model SR90	Model SR150
Drilling Hole Diameter	50-80mm	80-140mm
Max. Drilling Hole Depth	35m	180m
Shank Model	φ38mmx90mm
Impact Force	≥225J	15000N
Impact Frequency	≥34HZ	60rpm
Output Torque of Drill Rod	≥140NM	1500-2000NM
Workable Tunnel Dimensions	2.2m x 2.2m - 3.0m x 3.0m	2.2m x 2.2m - 3.0m x 3.0m
Total Air Consumption	≤225L/s	120-350L/s
Drilling Angles	0-360 degrees	0-360 degrees
Mounted	No (Man Portable)	Two Wheels Trailer
Weight for Rocks Drilling Machine	95KG	450KG
Dimensions for Rocks Drilling Machine	890x360x305mm
