HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine

1Set/Sets por mes
MOQ
negotiable
Precio
HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Servicio postventa proporcionado: Soporte técnico por vídeo
Tipo: Estación de perforación del núcleo
Fuerza: Diesel
Profundidad de perforación: 600m
Diámetro de perforación: 75 a 300 mm
Tubo de perforación: Φ60
Inclinación de perforación: 90° a 65°
Velocidad delantera del eje vertical: 32-1057r/min
Velocidad vertical de la revocación del eje: 29-137r/min
Viaje vertical del eje: 600 mm
Diámetro del orificio del eje vertical: 96mm
Eje vertical para mejorar la capacidad.: 60kN
Sola cuerda para aumentar capacidad: 30KN
peso: 3600 KG: 3600 kg
Dimensiones: 2900×2560×3300mm
Resaltar:

hydraulic core drilling rig

,

portable core drilling machine

,

copper exploration drilling equipment
Información básica
Lugar de origen: Zhejiang, China
Nombre de la marca: SANROCK
Certificación: CE ISO 9001:2015
Número de modelo: XYX-3
Documento: Core Drilling Rig.pdf
Pago y Envío Términos
Detalles de empaquetado: Paquete desnudo para máquinas, Paquete de caja de madera para repuestos o demanda del cliente.
Tiempo de entrega: 15-25 días
Condiciones de pago: L/C, T/T, Western Union, D/P, D/A
Capacidad de la fuente: 3000 juegos/juegos por mes
Descripción de producto

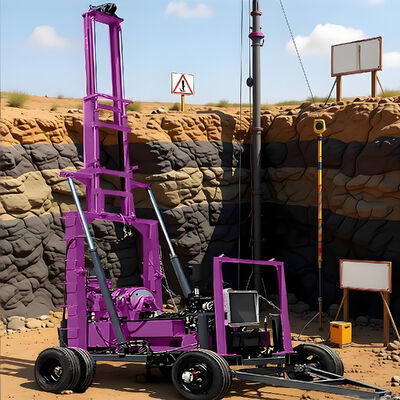

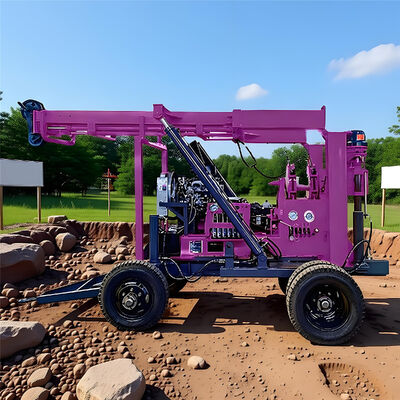

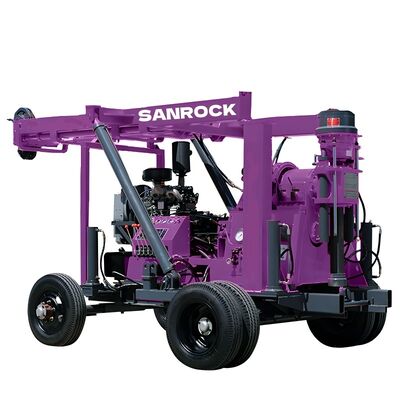

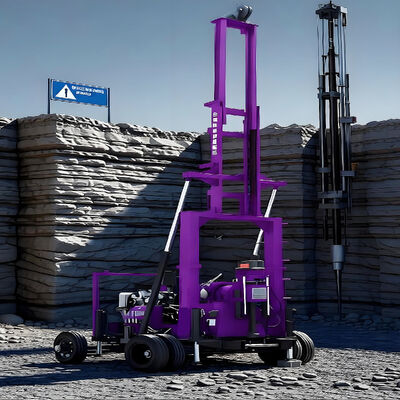

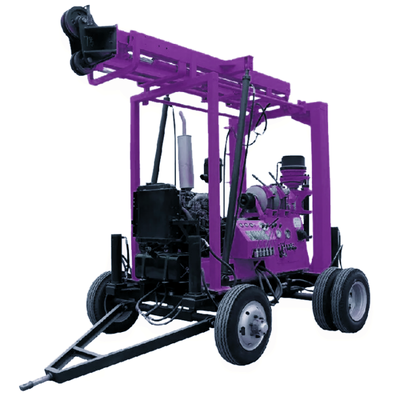

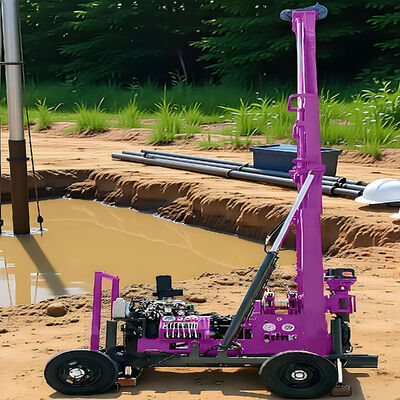

The SANROCK XYX-3 Copper Exploration Core Drilling Rig is engineered for copper mining exploration and base metal prospecting. This full hydraulic diamond core drill machine delivers 600 meters of drilling depth with a open hole diameter range of 75-325mm, making it ideal for copper porphyry deposit delineation and resource definition drilling.
The XYX-3's spindle-type hydraulic system provides smooth, vibration-free rotation that maximizes core recovery in soft to medium-hard copper-bearing formations. The diamond core drilling capability ensures pristine rock core samples for accurate copper grade assay and geological interpretation.
Key Specifications for Copper Exploration:
●Drilling Depth: 100m-600m (covers shallow oxide to deep sulfide zones)
●Power: 35-42KW diesel engine
●Core Barrel: NQ/HQ/PQ compatible
●Mud Pump: High-capacity for deep hole flushing
●Transport: 6-wheel trailer, highway-towable
Application Scenarios: Copper porphyry deposit drilling / VMS copper-zinc exploration / sediment-hosted copper / IOCG deposits / copper grade control / mine expansion drilling.

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 0

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 1

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 2

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 3

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 4

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 5

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 6

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 7


HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 8

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 9

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 10

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 11

Product Description

Type:Core Drilling Rig
Power Type:Diesel
Drilling depth:600m
Drilling diameter:75-300mm
Open hole diameter:300mm
Final hole diameter:75mm
Drill pipe:Φ60
Drilling inclination:90°--65°
Vertical axis forward speed:32-1057r/min
Vertical axis reversal speed:29-137r/min
Vertical axis travel:600mm
Vertical shaft bore diameter:96mm
Vertical axis to enhance ability:60kN
Single rope to enhance speed:0.5-1.9m/s
Rope diameter:12.5mm
Single rope to enhance ability:30kN
Reel diameter:300mm
Reel capacity:65m
Mud pump (optional)
Horizontal three-cylinder BW-250 mud pump
Displacement:250L/min
Work pressure:80kgcm2
Intake pipe diameter:76mm
Outlet diameter:51mm
Double gear pump:CBF-F63/25
Pre-flow pressure:63L/min 20Mpa
Post-flow pressure:25L/min 20Mpa
Diesel engine:CloudYN27/power 42kw / 2400rpm
Motor:Y180L-4/22kW/1470rpm
Rig weight:3600KG
Dimensions:2900×2560×3300mm

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 12

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 13

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 14

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 15

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 1

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 17

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 18

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 19

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 20

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 21

Company Information

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 22

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 23

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 24

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 25

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 26

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 27

Certificate

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 28

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 29

1.Do you provide design drawing and customization services for complete machines and drilling tools?
Please provide your technical specifications or project background details, and we are ready to develop a customized proposal based on your requirements.
This includes 2D and 3D design drawings , delivered in various formats including DWG, PDF, STEP, and IGES.
Our engineering team specializes in developing tailored solutions that meet your specific operational requirements, geological conditions, and performance objectives.

2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.

3.How is the shipment?   How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping.   Shipping efficiency depends on country and city you want to ship to.   For small and delicate products, we ship by DHL, UPS, Fedex or TNT.  You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC.  There will be strict inspection and testing for every order before shipping out.
